Encoder explanation | Digital electronics

An encoder is a combinational circuit used in digital electronics that transforms one form of data into another. Encoding input signals into a coded output representation is its main job. An encoder can accept input in binary, decimal, or alphanumeric formats, and its output is typically binary code.

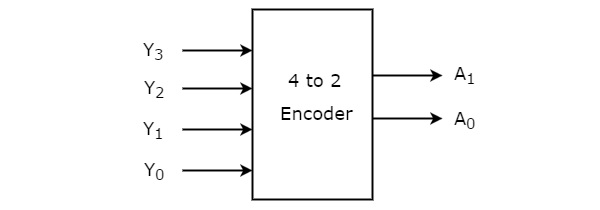

Binary encoders are a typical type of encoder that convert decimal numbers (or other symbols) into binary code. As an illustration, a 4-to-2 binary encoder converts 4 input lines into 2 output lines. The position of the active input line is represented by a binary integer that is encoded. For instance, if the second input line is active, the binary value of the output lines would be "0010".

Data processing, communication systems, and digital control systems all make extensive use of encoders. They are a crucial component of the digital electronics toolkit that transform various forms of data into formats that are appropriate for processing and transmission.

Let's explore encoders in digital electronics in more detail.

There are several types of encoders used in digital electronics, including:

1. **Priority Encoder**: This kind of encoder has an extra function that gives the input lines a priority. When numerous input lines are open at once, the priority encoder only encodes the input with the highest priority. It is frequently utilized in microprocessors to effectively handle interruptions and various input circumstances.

2. **Decimal-to-BCD Encoder**: This encoder transforms decimal numbers into Binary-Coded Decimal (BCD) format, in which each digit is represented by a 4-bit binary code. It is helpful in gadgets like calculators and digital screens.

3. **Octal-to-Binary Encoder**: ctal encoders accept inputs in octal (base-8) format and translate them into binary code. An equivalent 3-bit binary representation of each octal digit is created.

4. **Hex-to-Binary Encoder**:Hex-to-binary encoders change hexadecimal (base-16) inputs into binary outputs, much like octal encoders do. A 4-bit binary code is used to represent each hexadecimal digit.

5. **7-Segment Display Decoder**: Although it isn't a true encoder, encoders are frequently discussed in the same sentence. The relevant decimal digit or other symbols are displayed on a 7-segment display when this circuit receives binary inputs. In digital displays and calculators, it is frequently used to display numbers and letters.

In signal processing and data exchange, encoders are essential. They are used in encoding techniques like Manchester encoding, which represent data using particular signal transitions to ensure accurate transmission over communication channels.

Encoders, which enable the conversion of various data formats and enable effective data processing, communication, and control in a variety of applications, are key components of digital electronics.
