JK flip flop explanation

A common sequential logic circuit used in digital electronics is the JK flip-flop. It is a variation of the more straightforward SR (Set-Reset) flip-flop with extra features that increase its versatility and avoid some of the issues with the SR flip-flop.

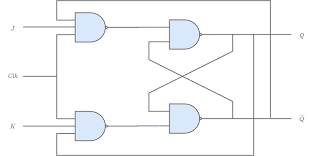

The JK flip-flop has two inputs, J (Jump) and K (Kill), two outputs, Q and Q̅, and two inputs, J and K. The current state is represented by the Q output, while the complement of the current state is represented by Q̅.

Here's a truth table that shows the behavior of a JK flip-flop:

J	K	Q(t)	Q̅(t)	Q(t+1)	Q̅(t+1)
0	0	0	1	0	1
0	1	0	1	0	1
1	0	0	1	1	0
1	1	1	0	0	1

Explanation of the inputs:

• J (Jump): When J = 1, it sets the flip-flop, forcing Q to 1 at the next clock pulse.
• K (Kill): When K = 1, it resets the flip-flop, forcing Q to 0 at the next clock pulse.

Explanation of the outputs:

• Q(t): The current state of the flip-flop at time t (before the clock pulse).
• Q̅(t): The complement of Q(t) at time t (before the clock pulse).
• Q(t+1): The next state of the flip-flop at time t+1 (after the clock pulse).
• Q̅(t+1): The complement of Q(t+1) at time t+1 (after the clock pulse).

Compared to the SR flip-flop, the JK flip-flop has the following distinctive qualities:

1. It can act as a toggle: When both J and K inputs are set to 1 (J=1 and K=1), the flip-flop switches between states with each clock pulse. This allows it to function as a toggle. This implies that it will switch from the state of 0 to 1 if it was in the former before the clock pulse.
2. It avoids the invalid state: It stays away from being invalid: The SR flip-flop reaches an illegal state (both Q and Q outputs are 1) if both S and R inputs are set to 0. This circumstance is avoided in the JK flip-flop by treating J=0 and K=0 as a "no change" state.

The JK flip-flop is a common component found in digital circuits and is employed for a variety of tasks including frequency division, data synchronization, counters, and memory storage elements in registers and RAM (Random Access Memory). Let's delve a little more into the JK flip-flop's features and uses.

1. Functionality as a Toggle: As was already established, the JK flip-flop's capacity to serve as a toggle is one of its key features. The flip-flop switches its output state with each clock pulse when both the J and K inputs are high (J=1 and K=1). This indicates that it switches between 0 and 1 on each edge of the clock. It can be used to create a variety of sequential circuits, including frequency dividers and oscillators, thanks to its toggle feature.

2. Edge-Triggered Behavior: The JK flip-flop is frequently employed in its edge-triggered version, which implies that instead of responding to the continuous values of the J and K inputs, it reacts to changes in the clock signal. Specifically, the flip-flop updates its outputs based on the J and K inputs at that precise point when the clock signal transitions from low to high (rising edge) or from high to low (falling edge). This edge-triggered behavior guarantees appropriate synchronization and avoids any potential bugs that level-triggered devices might experience.

3. Ripple Counters: To create ripple counters, a sort of digital circuit used to count clock pulses, JK flip-flops are frequently utilized. The output of one flip-flop acts as the clock input for the following flip-flop when they are connected in a chain. The JK flip-flop's toggle capability makes it especially well suited for building ripple counters since each flip-flop will switch its output state with each clock pulse, producing a precise count.

4. Shift Registers: Shift registers are serial logic devices that sequentially store and shift data bits. The construction of shift registers using JK flip-flops involves storing one data bit in each flip-flop and shifting that bit from one flip-flop to the next using a clock signal. Data storage, data transport, and serial-to-parallel or parallel-to-serial conversion are all applications for shift registers.

5. Memory and Data Storage: Multiple JK flip-flops can be combined to form more substantial memory elements, such registers or RAM cells, in memory circuits. These memory components are essential for temporary data storage and data processing in microprocessors, microcontrollers, and other digital systems.

6. State Machines and Sequence Generators: Designing state machines and sequence generators need JK flip-flops. State machines are objects that, depending on input signals and their existing state, can assume several states. They are utilized in automated systems, communication protocols, and control systems. In order to create patterns or implement sequence-based control, sequence generators produce specified binary sequences of values.

Overall, the JK flip-flop is a vital building block for creating sophisticated digital systems and circuits due to its adaptability, toggle ability, and edge-triggered behavior. Numerous industries, such as computer engineering, telecommunications, control systems, and consumer electronics, are among its many applications.
